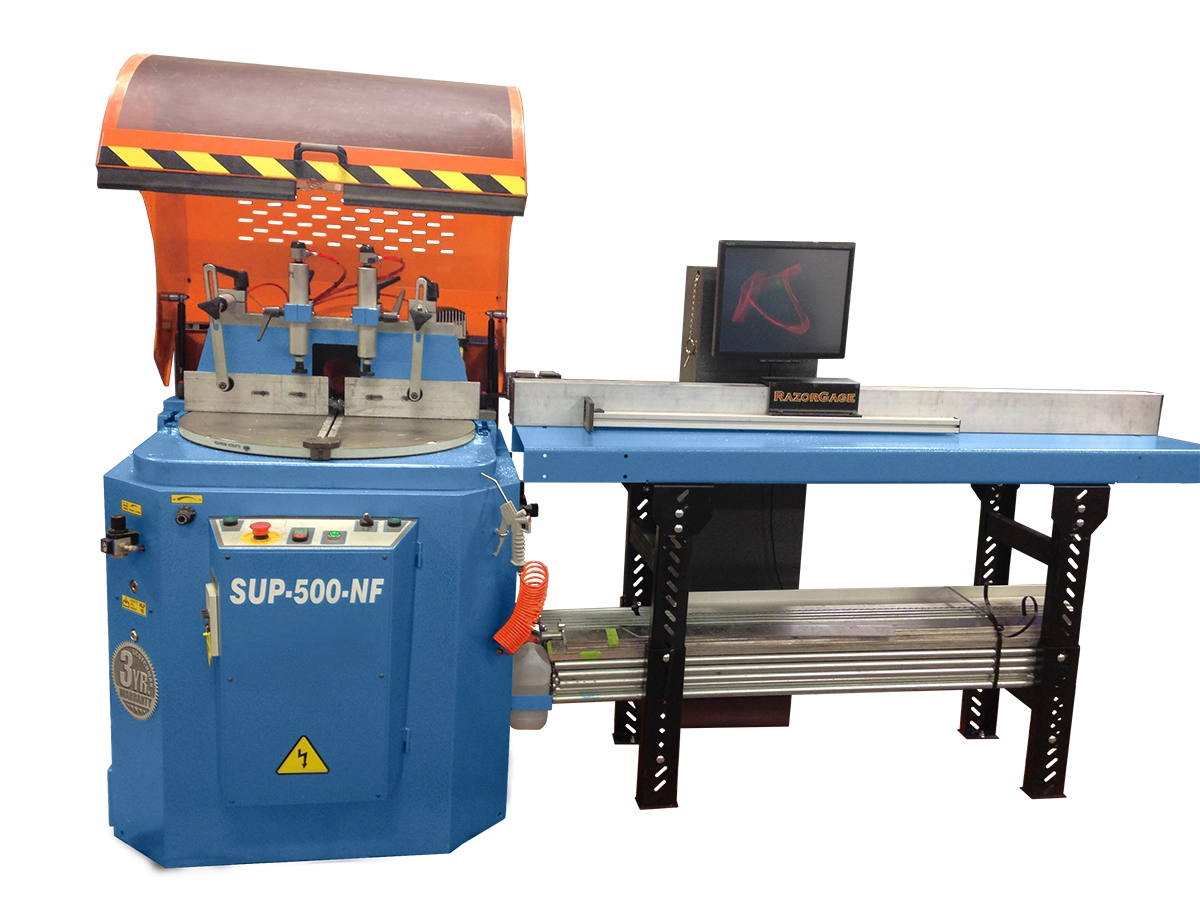

New SCOTCHMAN SUP-500 NF | High Speed Circular Saws (non-ferrous)
Have one to sell?
ConditionNew
New
Precision miter upcut non-ferrous saw
Miter capabilities with fixed ftops at 22.5 degree, 45 degree, 90 degree, 135 degree & 157.5 degree
Safety hood with safety interlock switch
Blade door with safety interlock switch
Dual palm buttons
Adjustable feed rate on saw head
Two horizontal pneumatic clamps
Two vertical pneumatic clamps
Capable of slotting
Moveable back fence for larger capacity
One gallon coolant
Mist coolant lubrication system
One 500 mm diameter, 120-tooth carbide blade
One blade wrench
Air hose
Chip collection drawer in base and a 4-3/4" chip collection port
Adjustable leveling pads
Meets CE standards
Warranty: Three years on parts
Made in Spain
Maximun Cutting Capacities (NF)
(Non-Ferrous & PVC )
Round
Square
Rectangle
90 Degree:
7" (178 mm)
6" (152 mm)
11-3/4" x 5" (298 x 127 mm)
45 Degree:
7" (178 mm)
4-3/4" (121 mm)
5-3/4" x 4-3/4" (146 x 121 mm)
Cutting Speed 3,000 RPM
Motor Rate 5.5 HP
Motor Options (Factory Wired) Specify:
230/460v, 3 ph
Air Pressure 90 psi
Maximum Diameter Blade 500 mm
Arbor Bore 50 mm
Width 42" 107 cm
Depth 45-3/8" 115 cm
Height (top of hood) 60-1/4" 153 cm
Height (floor to table) 38-5/8" 98 cm
Shipping Weight (may vary) 1,200 lbs. 545 kg
