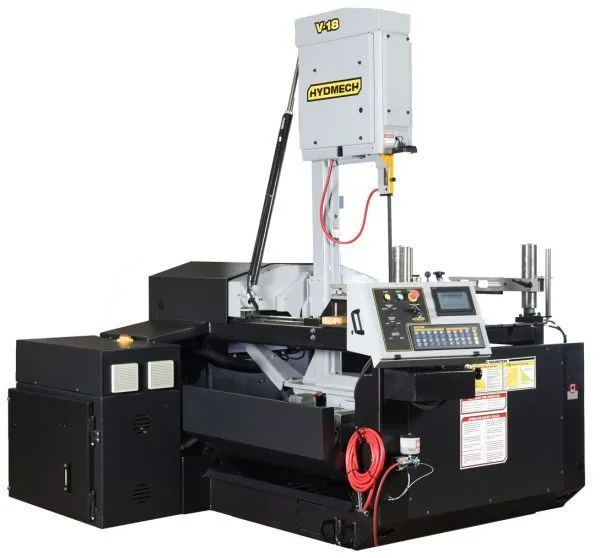

New HYD-MECH V-18-60 | Vertical Band Saws
Have one to sell?
ConditionNew
New
A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head advance/retract, blade tension, and guide arm movement.
Its optional 3° degree fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.
Two full stroking hydraulic vises
Select left or right side control panel
Powered movable guide arm
7.5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Cast iron band wheels
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
90 degree straight head
2 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light and work light
Variable vise pressure
Capacity Rectangular (h x w) Round
90° 23″ x 18″ 18″ with tall vise
45° 16″ x 18″ 13″
30° 10″ x 18″ 10″
90° with Overhead Bundling 12″ x 18″ 12″
45° with Overhead Bundling 12″ x 18″ 12″
30° with Overhead Bundling 6″ x 18″ 6″
Blade Size 1 1/4” x 16’ 11”
Blade Drive 7.5 HP VFD
Machine Voltage 208, 240, 480, 575 v
Blade Speed 65-385 SFM
Coolant Tank Capacity 55 Gal.
Machine Weight 4,800 lbs.
Table Height 44”
Dimensions (w x l x h) 98” x 120” x 112”
