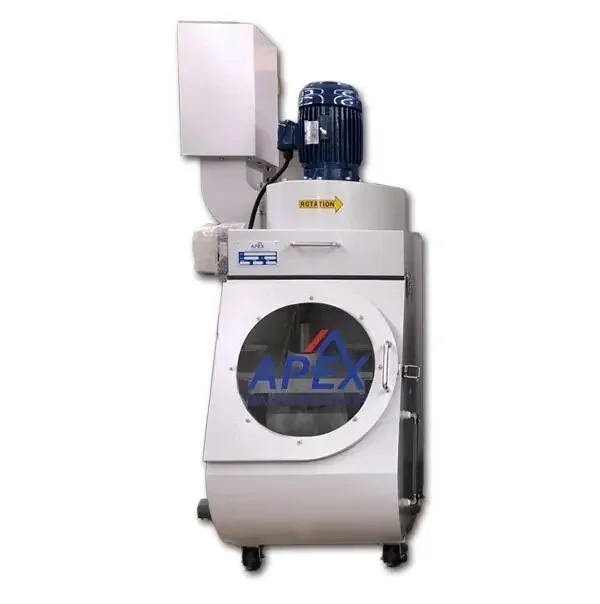

The Apex model PWDC-5HP wet dust collector is designed to filter the air by removing particulates from the air being exhausted into a wet chamber reducing the possibility of sparks catching fire in certain applications. The machine in designed to use 460- or 230-Volt electrical power with three phase and single phase options.
• 1250 CFM with vertical discharge at the top of unit thru silencer and mist controller
• 5 HP TEFC main motor
• Standard steel construction with marine powder paint to prevent rust
• Stainless steel blower mounted directly to the main motor
• Self-contained IP-54 electrical enclosure with Start and Stop buttons and overload protection
• Front access door for easy filling of water, also easy access for cleaning and washing out of material
• Large drain and manual valve to empty unit
• Sight gauge to observe water level
• Unit mounted on four heavy duty casters making it easy to move and position
• Machine weight - 1,650 lbs.
• Machine dimensions – 36“x 30“x 68“high
