New HYD-MECH AROSTOP AS30M Digital Measuring System | Tooling & Accessories

Description

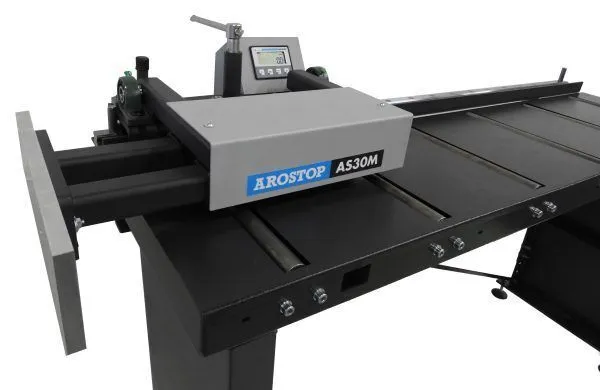

For manual operation, the AROSTOP AS30M offers a digital measuring system suitable for machines with a clamping capacity up to 15.75 inches and light to medium-heavy materials. Similar to the AS 30A, it consists of a large steel angle line with a 1.18-inch linear guide, a servo-controlled stop carriage with 2 play-free linear carriages. Mounted on the discharge side, this model functions as a stop measuring system with a simple and clearly readable digital display. It can be easily mounted on various roller conveyors.

Basic component digital measuring system AS30M L=6.81’ with flip over stop measuring length +/- 15.75”

Standard Features

• Manual movement of the flip over stop
• Clamping devise for the flip over stop
• Positioning accuracy ± 0.0079”
• Counter reversible with selector switch
• Two low friction linear roller guides with brake system
• Easy to modify afterwards into an automatic measuring system
• Easy to extend by adding components
• Brackets for mounting on a roller table
• Manual flip over stop
• Operating and spare part manual

Optional Features
• Extension AS30M L=6.3’ Part# 710-005 Option Price $1,100

• Measuring finger for AS30M Part# 710-016 Option Price $ 250
including finger 39” and stop plate,
for using maximum measuring length

• Control box on high arm, tilted Option Price Upon Request
