New HYD-MECH CSNC-150 | Circular Cold Saws

Description

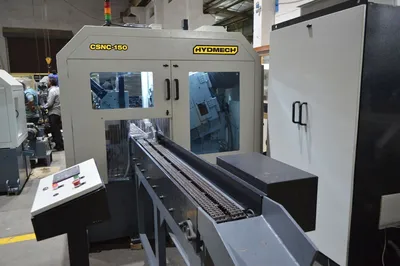

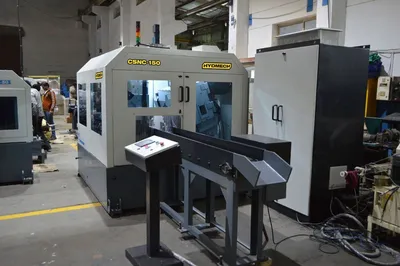

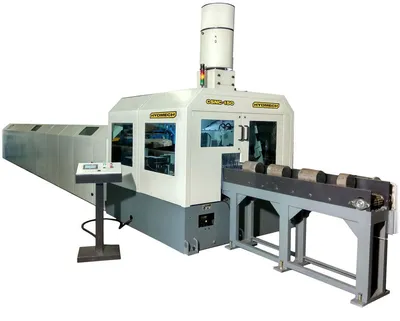

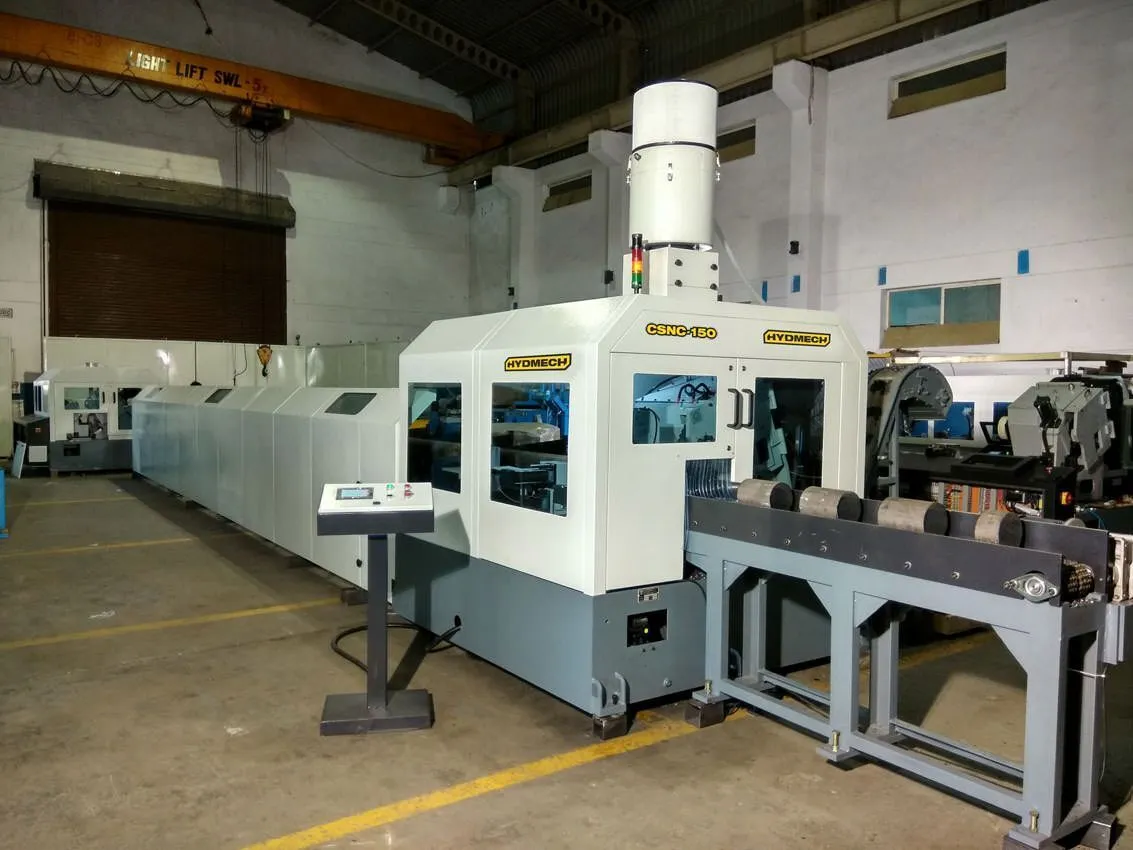

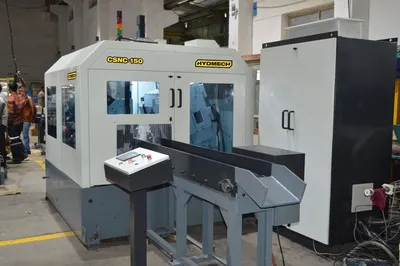

CSNC-150 CARBIDE CIRCULAR SAW

High Speed, Automatic Circular Sawing Machine
Cut with the highest level of precision with the lowest possible cycle time with the CSNC-150 model. Designed for use with carbide tipped blades, one carbide circular saw is so fast that just one machine can produce the same output as five band saws.

Featuring a 1.18” – 6” round capacity at 90°, 40 HP motor, and a 460mm blade, the CSNC-150 is a versatile high-speed cutting machine.

STANDARD FEATURES
• Mitsubishi PLC Controller allows for 200 programs to be saved.
• Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade
• Material library with US steel grades menu with ability to add custom material grades
• Bar feed features a roller bed with a material gripper feed carriage indexing via ball screw and AC servo drive. Shuttle speed: 200 mm per second.
• Heavy duty saw head is driven by ball screw and AC servo drive with a patent pending counterbalance feature
• Mist exhaust system
• Patent pending blade cooling system
• Air moisture separator
• Bar retracts automatically for contact free return stroke of the saw blade
• Universal Bar Loader for round and square material with hydraulic incline pitch adjustment and safety guard sheets provides inclined storage width of 35” (885 mm) for rounds. Capacity: 5700 kg.
• PLC controlled automatic oil lubrication of all moving parts
• Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
• Variable vise pressure control with dial gauge – two stations
• Cooling nozzle
• Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator.
• Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
• Status light indicating tower
• Chain chip conveyor
• Air cooled electric magnetic head break removes all backlash
• Built in hydraulic tank and power pack
• Tool steel hardened precision blade guides
• Power transformer
• Four blade starter package• Blade specs: 460 mm x 2.7 kerf x 2.25 mm body x 50 mm bore
• Pin holes: 4/15/80 mm
• Bolt holes: 4/12/90 mm
OPTIONAL FEATURES
• Bundle unscrambler
• PLC program modifications
• Maintenance kit
• Long cut bar out feed motorized conveyor table with guarding in the following lengths – 1000 mm, 2000 mm, and 3000 mm
