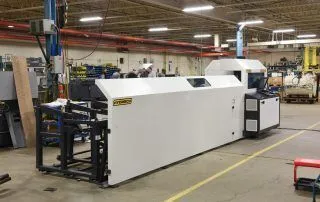

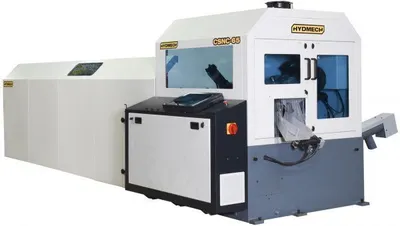

New HYD-MECH CSNC-65 | Circular Cold Saws

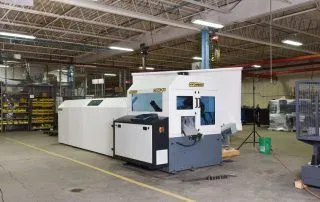

Description

Standard Machine Features

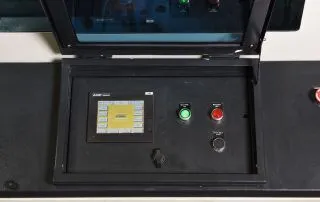

• Mitsubishi PLC Controller allows for 200 programs to be saved.
• Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the
saw blade.
• Material library with US steel grades menu with ability to add custom material grades
• Bar feed and roller table with a material gripper feed carriage indexes 19.69” via ball screw and
AC servo drive. Shuttle speed: 7.87” per second

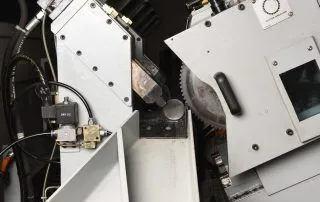

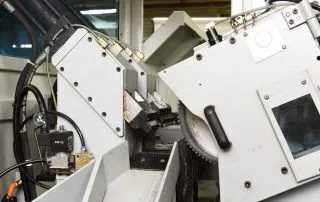

• Heavy duty saw head is driven by ball screw and AC servo drive
• Mist exhaust system

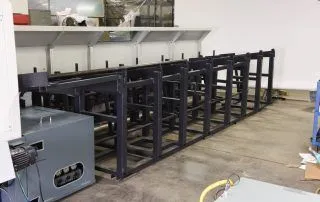

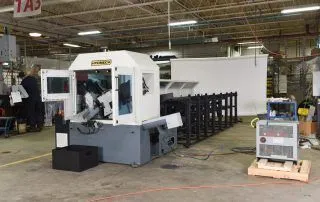

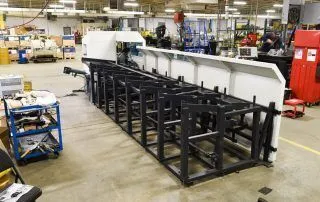

• Universal Bar Loader for round and square material with safety guard sheets provides
inclined storage width of 27.9” (710 mm) for rounds, manual incline setting. Capacity: 3,747 lbs.

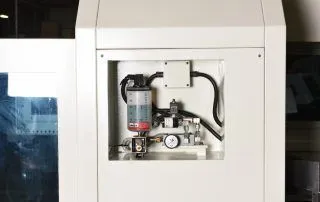

• PLC controlled automatic oil lubrication of all moving parts
• Output sorting ensures trim cuts and remnant pieces are sorted automatically from good parts
• Variable vise pressure control with dial gauge – two stations with hydraulic horizontal and
vertical clamping
• Power transformer

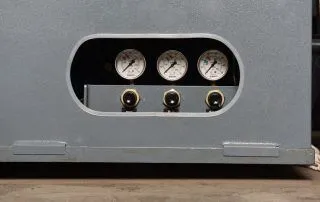

• Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low,
the machine will alarm to alert the operator.
• Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
• Status light indicating tower

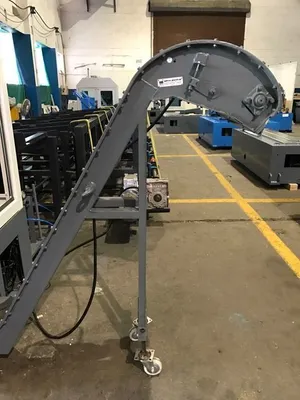

• Chip auger

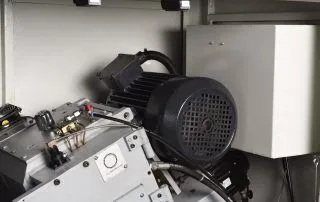

• Air cooled electric magnetic head break removes all backlash.

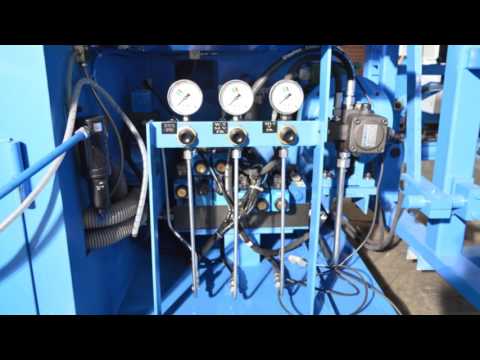

• Built in hydraulic tank and power pack
• Tool steel hardened precision blade guides
• Four blade starter package
• Blade specs: 250 mm x 1.70 mm body x 32 mm bore
• Pin holes: 4/9/50 mm
• Bolt holes: 4/11/63 mm

Technical Specifications

Capacity at 90°
Round: 0.4”– 2.55” / 10-65 mm
Square: 0.4” – 1.96” / 10-50 mm

Blade Size: Carbide/Cermet tip 250mm x 1.7 mm body
Cutting Axis: 22 degree slant type
Bar Stock Length: 10’-20’ / 3-6 m
Blade Drive: 10 HP / 7.5 kW
Trim Cut: Zero or prog. 0.4”-3.9”
Hydraulic Drive: 3 HP / 5 HP for non-round loader
Single Stroke: 20” multi-index standard
Machine Voltage: 240, 480, 575 v *transformer supplied
Machine Capacity: 4,400 lbs / 2000 kg
Blade Speed: 50-200 MPM
Machine Weight: 5,500 lbs / 2500 kg
Cut off length: Min 0.24”
Machine Dim: 1950 x 2500 x 1900 (W x L x H)
Remnant length: 1.57” + cut length + blade thickness
