MC MACHINERY -PH30050 - HYDRAULIC
Have one to sell?
ConditionNew
New

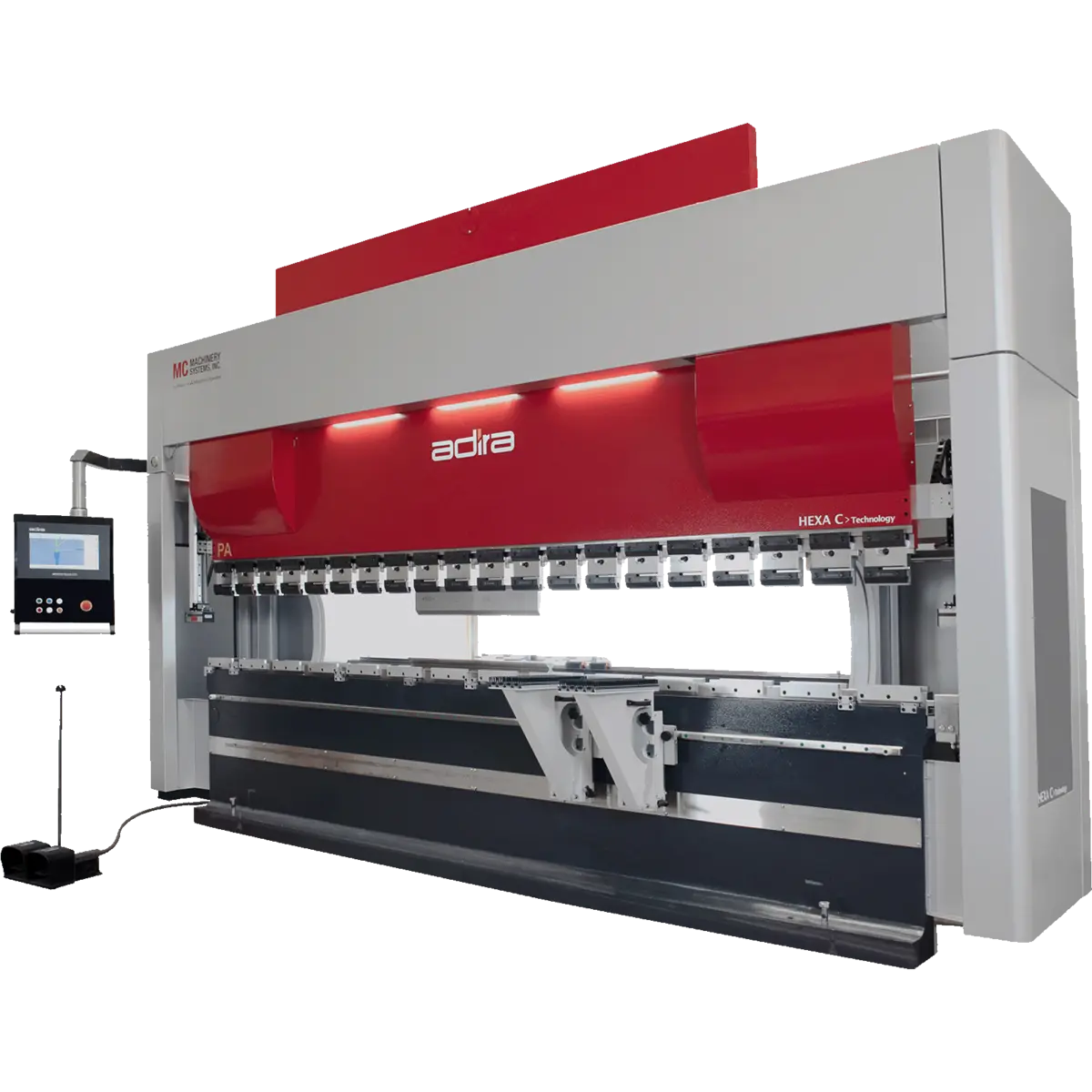

The PA Plus series combines functionality and versatility in one powerful package. The PA Plus series is designed for a large array of accessories for a customizable solution.
When you hear “hydraulic press brake,” you might immediately think of raw, powerful bending on even the longest or thickest pieces. And that’s certainly true. But what if you could apply that kind of performance in any situation—regardless of project requirements, piece dimensions, or other variables?
That’s the true benefit of the PA Plus series’ extreme customizability: You’re getting the performance of a hydraulic press brake, plus the confidence that comes with knowing your bending department will always be ready for anything.
Capacity 330 US Tons 300 metric Tons
Ram Repeatability + 0.001 In. + 0.02 mm
Approach Speed Max 236 IPM 100 mm/s
Bend Speed Max 18 IPM 8 mm/s
Return Speed Max 236 IPM 100 mm/s
Punch Holder Height 4.9 In. 125 mm
Back Gauge X Distance 24.6 In. 625 mm
Back Gauge Repeat Accuracy +0.0009 In. +0.025 mm
R axis Travel 7.8 In. 200 mm
Bending Length 200.78 In. 5100 mm
Distance Between Frames 163.38 In. 4150 mm
Ram Stroke 9.84 In. 250 mm
Daylight w/o Punch Holders 19.6 In. 500 mm
Daylight w/ Punch Holders 16.14 In. 410 mm
Daylight w/ Hyd Clamping See Style See Style
Throat Depth 15.74 In. 400 mm
Table Height 33.85 In. 860 mm
Table Width See Style See Style
Weight 63,934 lbs. 29,000 kg.
Underfloor distance (Pit) NA NA
Motor Power 18KW 18KW
Standard Voltage 480 V 480 V
