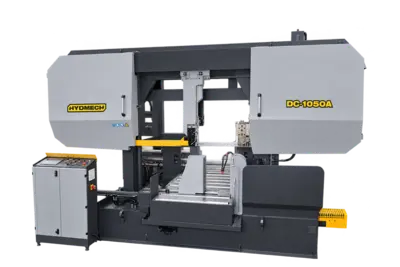

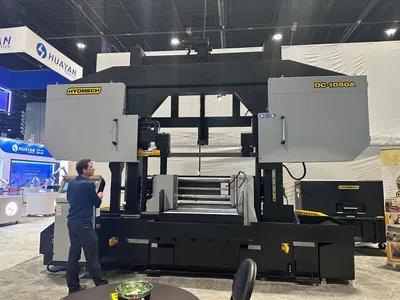

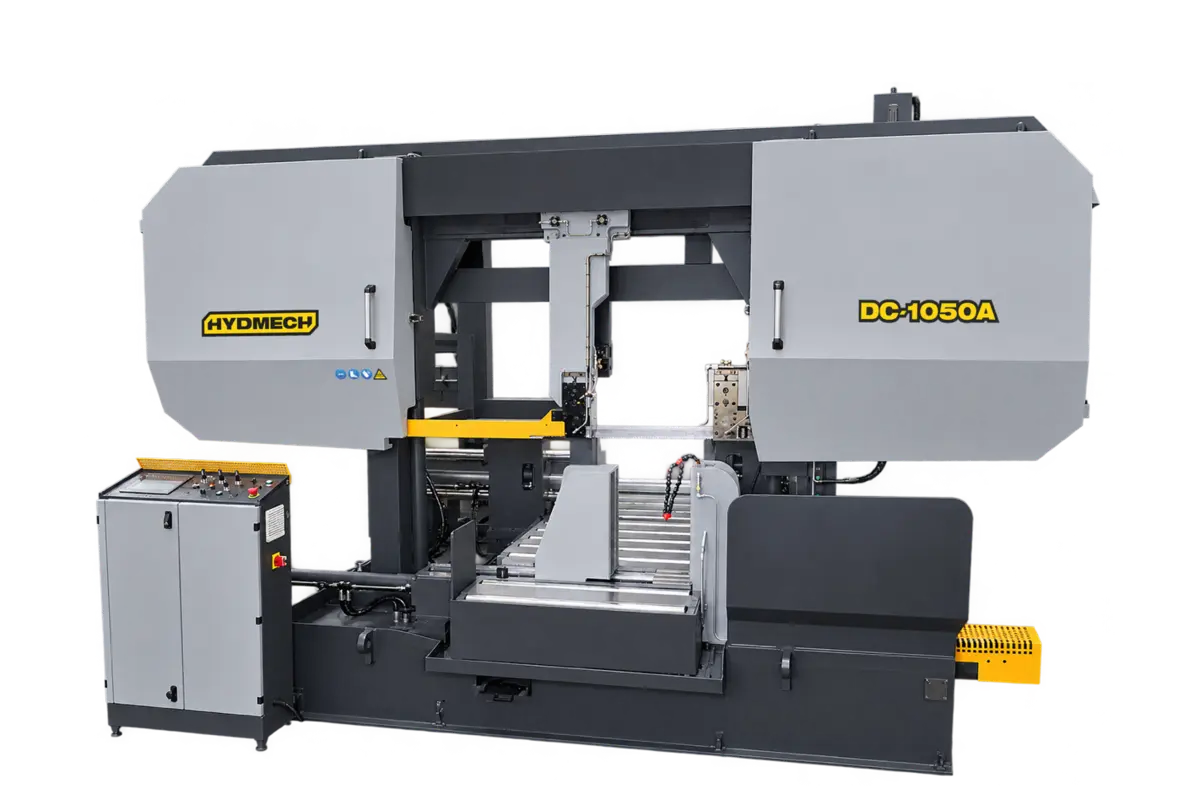

HYD-MECH DC-1050A+ Heavy Duty Dual Column Automatic Band Saw
Have one to sell?
ConditionNew
New
The DC-1050A+ utilizes a PLC-controlled automatic cycle sequencing system that manages material clamping, servo-driven indexing, saw head feed, blade motion, and automatic head return. A precision servo ball screw system governs both saw head movement and material indexing, ensuring consistent positioning and repeatable results throughout extended production runs. The integrated touchscreen HMI provides intuitive setup for cut length, batch quantity, and cycle parameters, while closed-loop sensor feedback continuously monitors machine performance. A pressure-balancing hydraulic feed system automatically adjusts cutting force based on material conditions, improving blade life and cut quality while minimizing operator involvement.
Specification
Capacity – 90° Rectangular 41” H x 41” W / 1050 mm H x 1050 mm W
Capacity – 90° Round/Square 41” / 1050 mm
Blade Size 2 5/8” x 34’ 11” / 67 mm x 10650 mm
Blade Speed 65–265 SFM VFD / 20–80 m/min
Blade Drive 25 HP VFD / 18.5 kW
Auto Multi-indexing Up to 11.81” in a single stroke / Up to 300 mm in a single stroke
Hydraulic Tank Capacity 80 L / 21.13 Gallons
Coolant Tank Capacity 25 Gallons
Hydraulic Motor 1 HP / 0.74 kW
Coolant Motor & Cleaning Brush Motor 0.16 HP / 0.12 kW
Electrical Protection IP54
Machine Voltage 480 V, 3 Phase, 60 Hz / 208, 240, 575 V with optional transformer
Table Height 31.5” / 800 mm
Machine Weight 29,762 lbs. / 13,500 kg
Machine Dimensions L x W x H 236” x 165” x 142” / 6000 mm x 4200 mm x 3600 mm
Standard Features
• Fully automatic dual-column band saw design
• Concrete polymer–filled saw bow and dual columns
• Direct frequency drive transmission for smooth, maintenance-free blade drive with no belts or pulleys
• Heavy-duty direct blade drive motor with German Nord gearbox and motor for high torque and reliable power transmission
• Variable frequency blade speed control (65–265 SFPM)
• Four-point hydraulic blade tensioning system
• Direct blade guide system
• Automatic blade guide adjustment synchronized with clamping vise
• PLC-controlled automatic cycle sequencing
• 10” touchscreen HMI with integrated PLC control
• Out of stock switch
• Independent closed-loop servo ball screw system for saw head feed (up/down)
• Closed-loop servo ball screw indexing system with programmable multi-indexing for accurate, repeatable batch cutting
• Digital linear scale/encoder for length control
• Laser cut-line indicator for fast, accurate blade-to-material alignment
• Hydraulic main split front vise with variable vise pressure
• Full capacity hydraulic overhead bundling clamps secure multi-bar or tube bundles for faster throughput and consistent bundle cutting accuracy
• Roller support across the full length of the indexing table
• Separate hydraulic power pack with large-capacity reservoir
• Mist lubrication system
• Powered wire cleaning brush
• Electrically driven chip auger
• Signal tower LED run/stop light on top of the machine
• Electrical protection to IP54
• Work light
