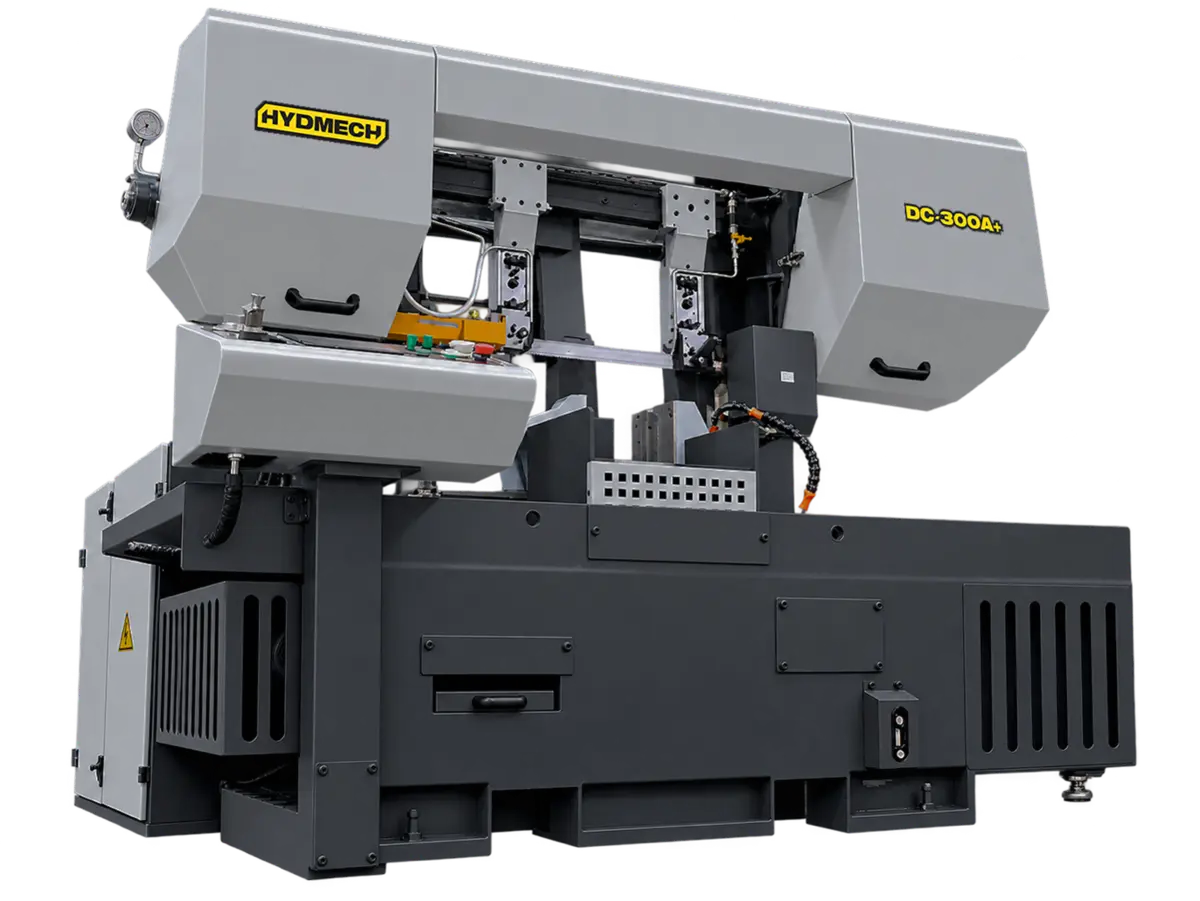

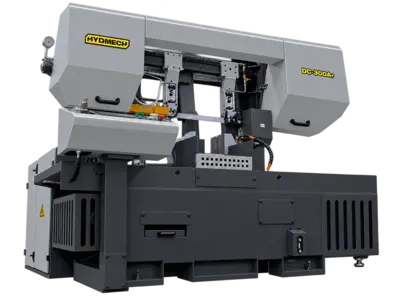

HYDMECH DC-300A fully automatic dual-column horizontal band saw
Have one to sell?
ConditionNew
New
The HYDMECH DC-300A is a compact, fully automatic dual-column horizontal band saw designed for consistent, high-accuracy cutting in production environments where efficiency and repeatability are critical. Its rigid dual-column construction, combined with a four-point hydraulic blade tensioning system, delivers straight, square cuts across a wide range of solid and structural materials.
Built for unattended operation, the DC-300A features full hydraulic automation, PLC-controlled cycle sequencing, and variable frequency blade speed control—making it an ideal solution for fabrication shops, service centers, and manufacturers seeking reliable automatic sawing in an efficient production footprint.
Why the DC-300A Performs
• Rigid dual-column construction for cutting accuracy
• Concrete polymer–filled saw bow and column for vibration damping and stability
• Four-point hydraulic blade tensioning for consistent blade performance
• High-efficiency power transmission through a direct blade drive system
• Heavy-duty bearing housing isolates gearbox from blade tensioning forces to improve long-term reliability
• Pre-hardened, pre-loaded linear motion guides for smooth saw frame travel
• Variable frequency blade speed control for material-specific cutting
• Automatic shuttle indexing for repeatable length accuracy
• Designed for continuous production with minimal operator intervention
Automatic Operation & Control System
The DC-300A utilizes PLC-controlled automatic cycle sequencing to manage material clamping, blade feed, head movement, and shuttle indexing. A digital linear scale with sensor feedback ensures accurate length positioning and repeatable batch production.
A pressure-balancing hydraulic valve automatically regulates feed force based on material conditions, improving cut quality while extending blade life. Operators can quickly program cut lengths and batch quantities through the user-friendly touchscreen interface, reducing setup time and ensuring consistent performance across shifts.
Capacity – 90°
Rectangular 11.81” H x 11.81” W 300 mm H x 300 mm W
Capacity – 90°
Round/Square 11.81” 300 mm
Blade Size 1 1/4” x 14’ 5” 34 mm x 4400 mm
Blade Speed 65-265 SFM VFD 20-80 m/min
Blade Drive 5 HP VFD 3.7 kW
Auto Multi-indexing Up to 23.62” per single stroke Up to 600 mm per single stroke
Hydraulic Tank Capacity 80 L 21.13 Gallons
Coolant Tank Capacity 15 Gallons
Hydraulic Motor 1 HP 0.74 kW
Coolant Motor
. & Cleaning Brush Motor 0.16 HP 0.12 kW
Electrical Protection IP54
Machine Voltage 480 V, 3 Phase, 60 Hz 208, 240, 575 V as option
Table Height 29.5” 750 mm
Machine Weight 3,748 lbs. 1,700 kg
Machine Dim. L x W x H 102” x 75” x 69” 2600 mm x 1900 mm x 1760 mm
The HYDMECH DC-300A is a compact, fully automatic dual-column horizontal band saw designed for consistent, high-accuracy cutting in production environments where efficiency and repeatability are critical. Its rigid dual-column construction, combined with a four-point hydraulic blade tensioning system, delivers straight, square cuts across a wide range of solid and structural materials.
Built for unattended operation, the DC-300A features full hydraulic automation, PLC-controlled cycle sequencing, and variable frequency blade speed control—making it an ideal solution for fabrication shops, service centers, and manufacturers seeking reliable automatic sawing in an efficient production footprint.
Why the DC-300A Performs
• Rigid dual-column construction for cutting accuracy
• Concrete polymer–filled saw bow and column for vibration damping and stability
• Four-point hydraulic blade tensioning for consistent blade performance
• High-efficiency power transmission through a direct blade drive system
• Heavy-duty bearing housing isolates gearbox from blade tensioning forces to improve long-term reliability
• Pre-hardened, pre-loaded linear motion guides for smooth saw frame travel
• Variable frequency blade speed control for material-specific cutting
• Automatic shuttle indexing for repeatable length accuracy
• Designed for continuous production with minimal operator intervention
Automatic Operation & Control System
The DC-300A utilizes PLC-controlled automatic cycle sequencing to manage material clamping, blade feed, head movement, and shuttle indexing. A digital linear scale with sensor feedback ensures accurate length positioning and repeatable batch production.
A pressure-balancing hydraulic valve automatically regulates feed force based on material conditions, improving cut quality while extending blade life. Operators can quickly program cut lengths and batch quantities through the user-friendly touchscreen interface, reducing setup time and ensuring consistent performance across shifts.
Imperial
| Dimensions | L: 102” x W: 75” x H: 69” |
| Weight | 3,748 lbs. |
Capacity – 90°
Rectangular 11.81” H x 11.81” W 300 mm H x 300 mm W
Capacity – 90°
Round/Square 11.81” 300 mm
Blade Size 1 1/4” x 14’ 5” 34 mm x 4400 mm
Blade Speed 65-265 SFM VFD 20-80 m/min
Blade Drive 5 HP VFD 3.7 kW
Auto Multi-indexing Up to 23.62” per single stroke Up to 600 mm per single stroke
Hydraulic Tank Capacity 80 L 21.13 Gallons
Coolant Tank Capacity 15 Gallons
Hydraulic Motor 1 HP 0.74 kW
Coolant Motor
. & Cleaning Brush Motor 0.16 HP 0.12 kW
Electrical Protection IP54
Machine Voltage 480 V, 3 Phase, 60 Hz 208, 240, 575 V as option
Table Height 29.5” 750 mm
Machine Weight 3,748 lbs. 1,700 kg
Machine Dim. L x W x H 102” x 75” x 69” 2600 mm x 1900 mm x 1760 mm
